PART NUMBER SPECIFICATIONS

PART NO: 880862-5001W



UPGRADE REPLACEMENT WHERE USED

GARRETT 798166-5006S / 812971-5002S / 812971-5006S / 853333-5001W

FORD BK3Q6K682RC /BK3Q6K682AB /BK3Q6K682AC

MAZDA UH0513700 / 1D0113700A

ADDITIONAL INFORMATION

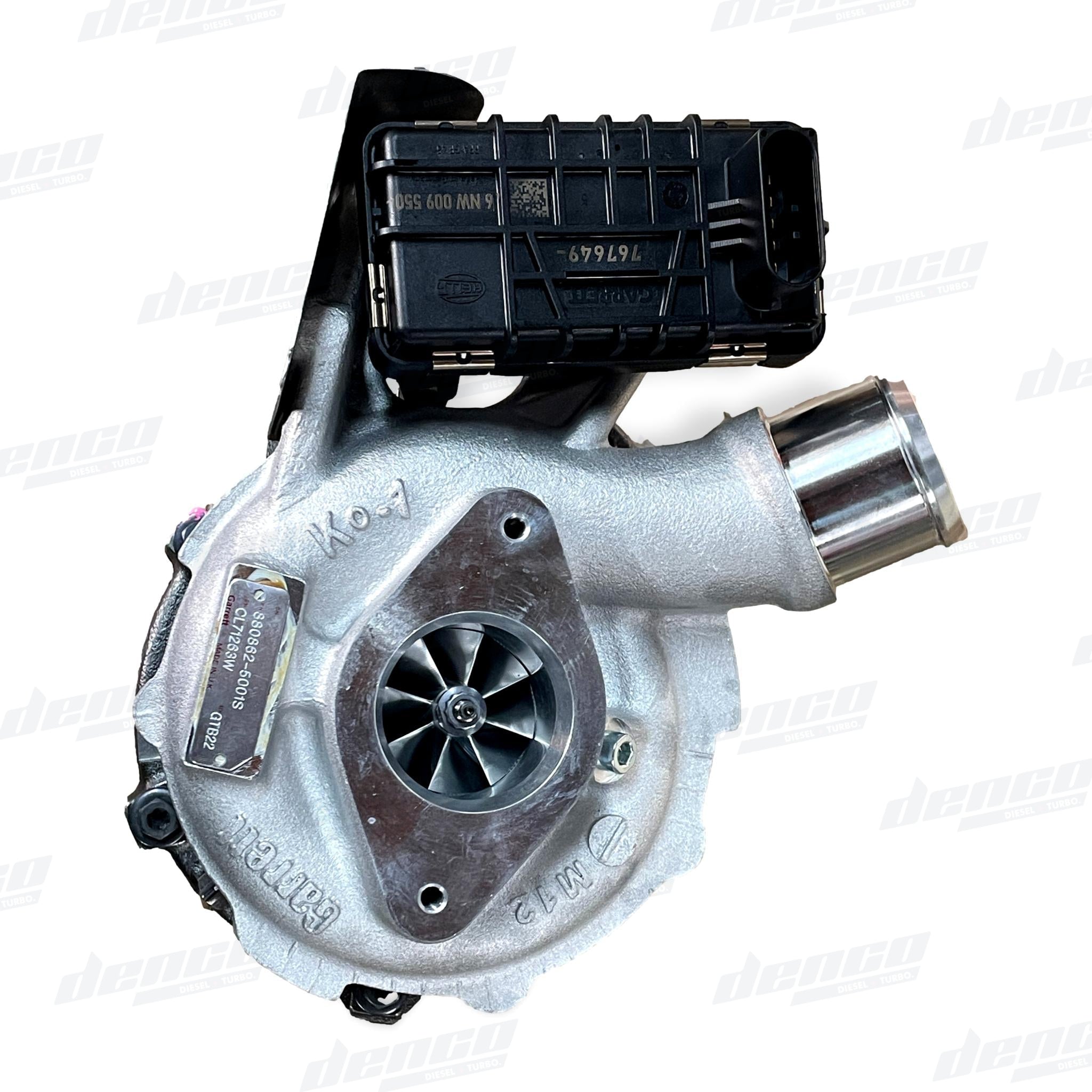

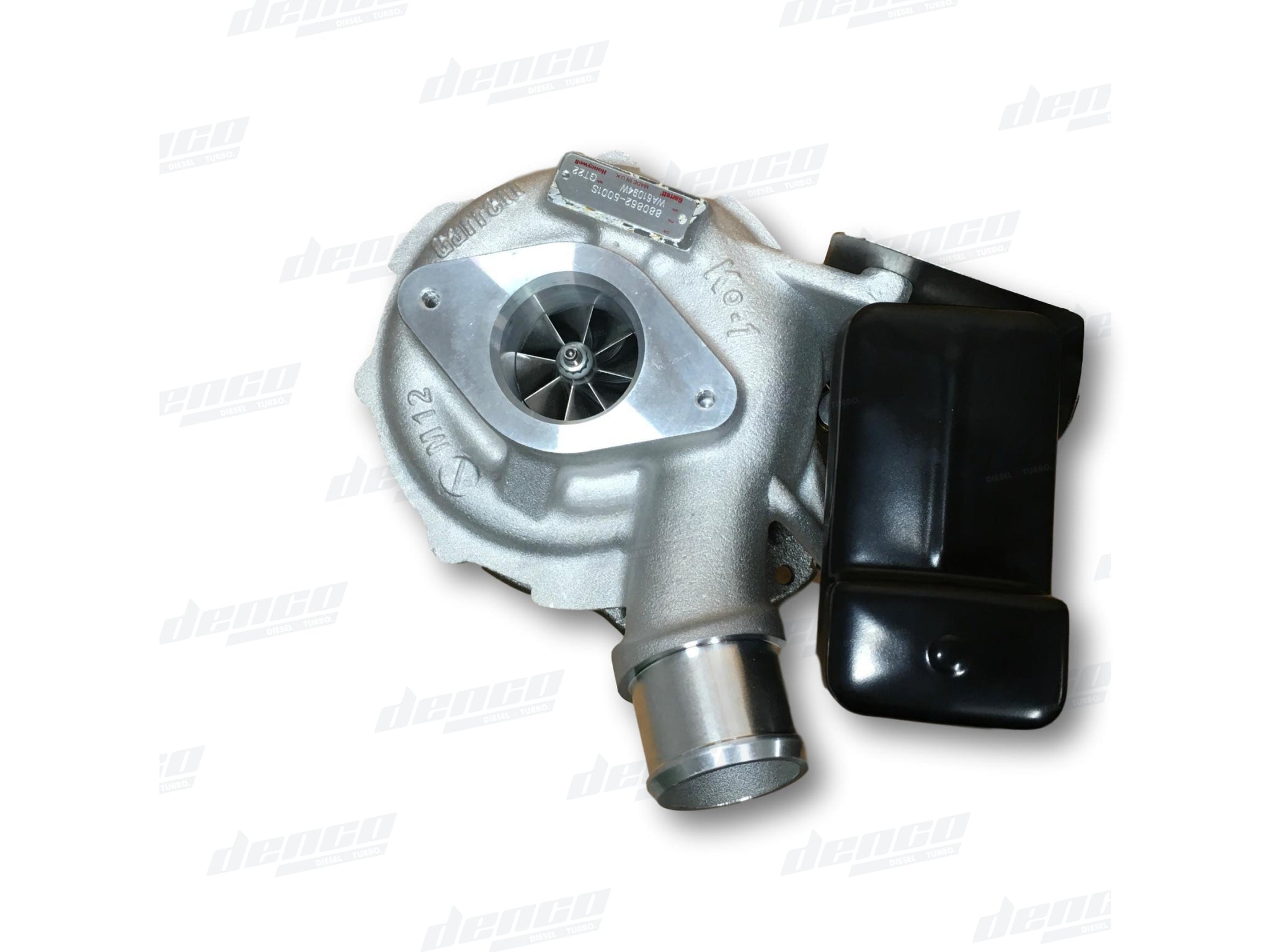

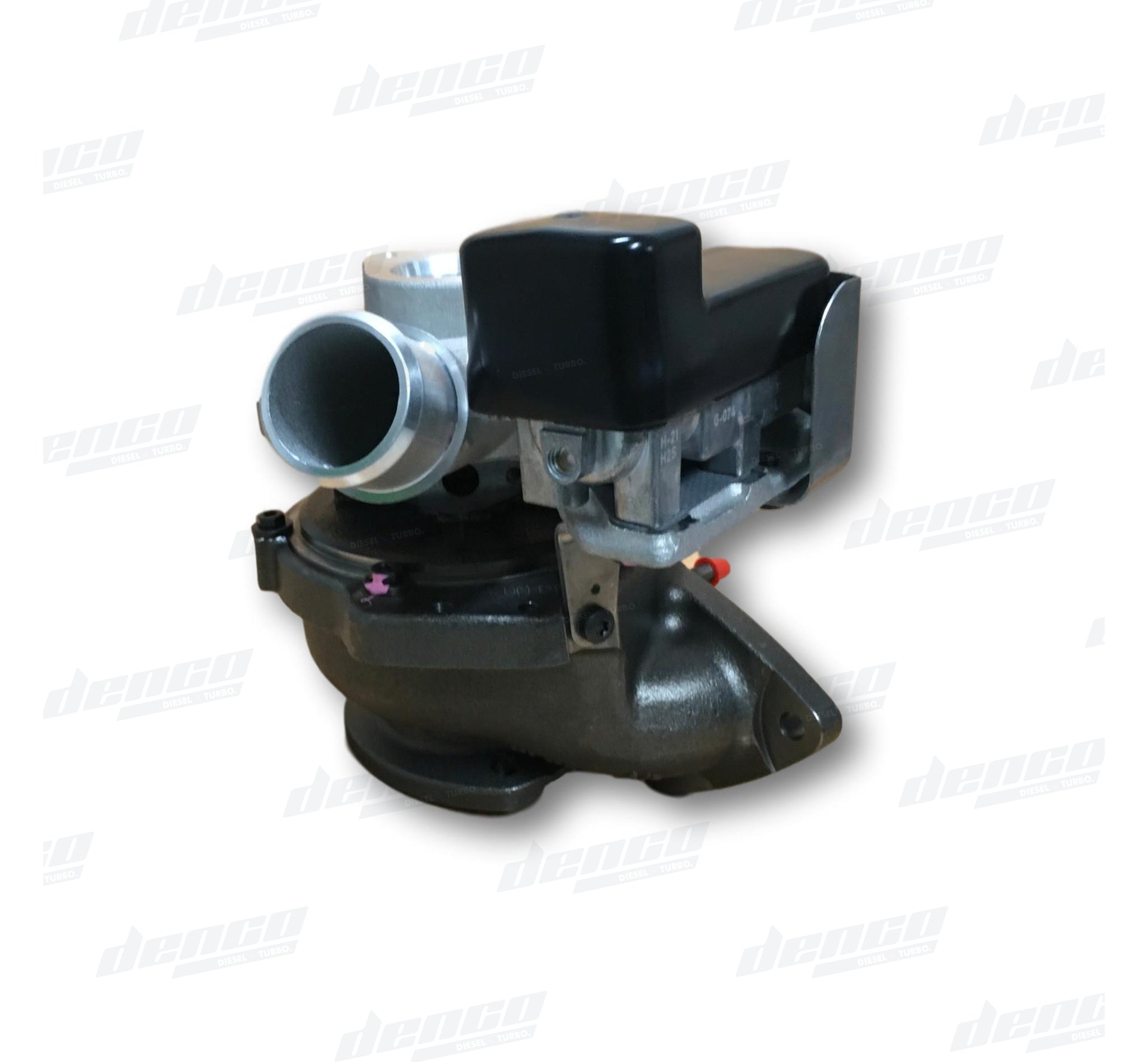

The Garrett PowerMax direct fit turbocharger is designed for the 3.2L Duratorq 5 cylinder diesel engine platform found in the 2011-2015 Ford PX1 Ranger and the 2011-2015 Mazda BT-50 (UP series). The forged fully machined compressor wheel designed for the GTX Gen II product line increases flow by 20% over the OE wheel. With the correct engine calibration, this enables the engine to be tuned up to 172kW from OE standard 147kW.

Compressor Map Comparison Garrett PowerMax vs OE

- GTX GEN II COMPRESSOR WHEEL AERODYNAMICS

- WIDER COMPRESSOR MAP FOR IMPROVED PERFORMANCE

- 20% MORE FLOW THAN THE OE TURBOCHARGER

*Estimated performance results of this product are highly dependent upon your vehicle's modifications and tuning / calibration. The target power represented above has been calculated based strictly on choke flow of the compressor map (total turbo capability) which represents the potential flywheel power.

VEHICLE INFORMATION

MANUFACTURER: FORD / MAZDA

VEHICLE: RANGER / BT50

MODEL: PX1 / UP SERIES

ENGINE: P5AT

FROM YEAR: 2011-2015

DISPLACEMENT: 3.2Ltr

FUEL TYPE: DIESEL

TURBO INFORMATION

BRAND: GARRETT

MODEL: GTB2256VK

TECHNOLOGY: VNT

ACTUATION: SREA ELECTRIC

CONDITION: NEW

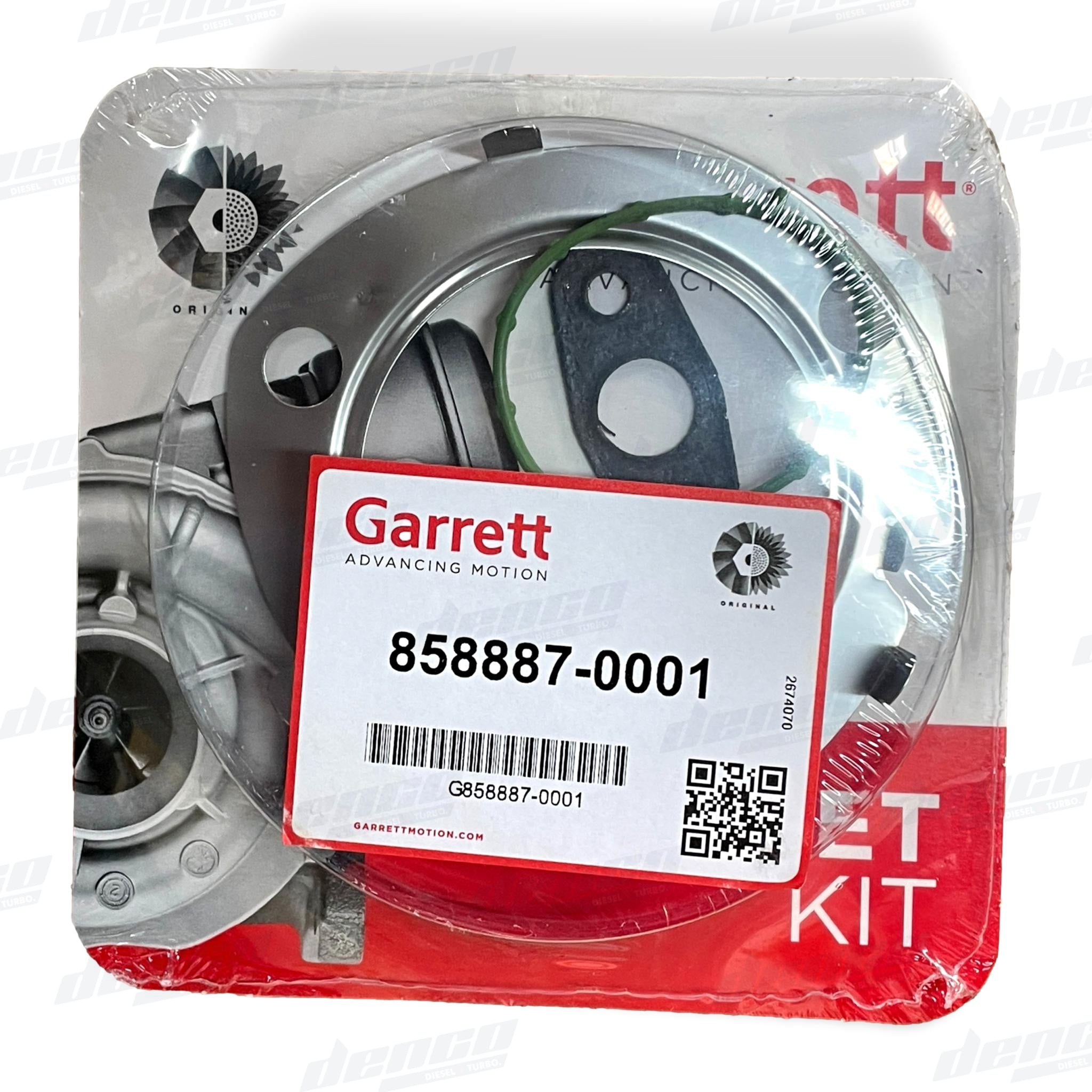

GASKETS SUPPLIED WITH TURBOCHARGER (as pictured)

This turbo is brand new and genuine Garrett - comes complete with 12 months warranty and after sales service.

RELATED PAGES

turbo installation instructions - garrett

Garrett Advancing Motion

  • SKU880862-5001W
  • WEIGHT13.431 kg
  • STOCKIn Stock
TOTAL
$1,748.00
