REPAIR KIT INFORMATION

Part No: 3575205H

Alternate Part No: 3575205

Brand: Holset

Model: HX30, HX30W, HY30W

This is a genuine Holset Turbo Repair Kit and is brand new.

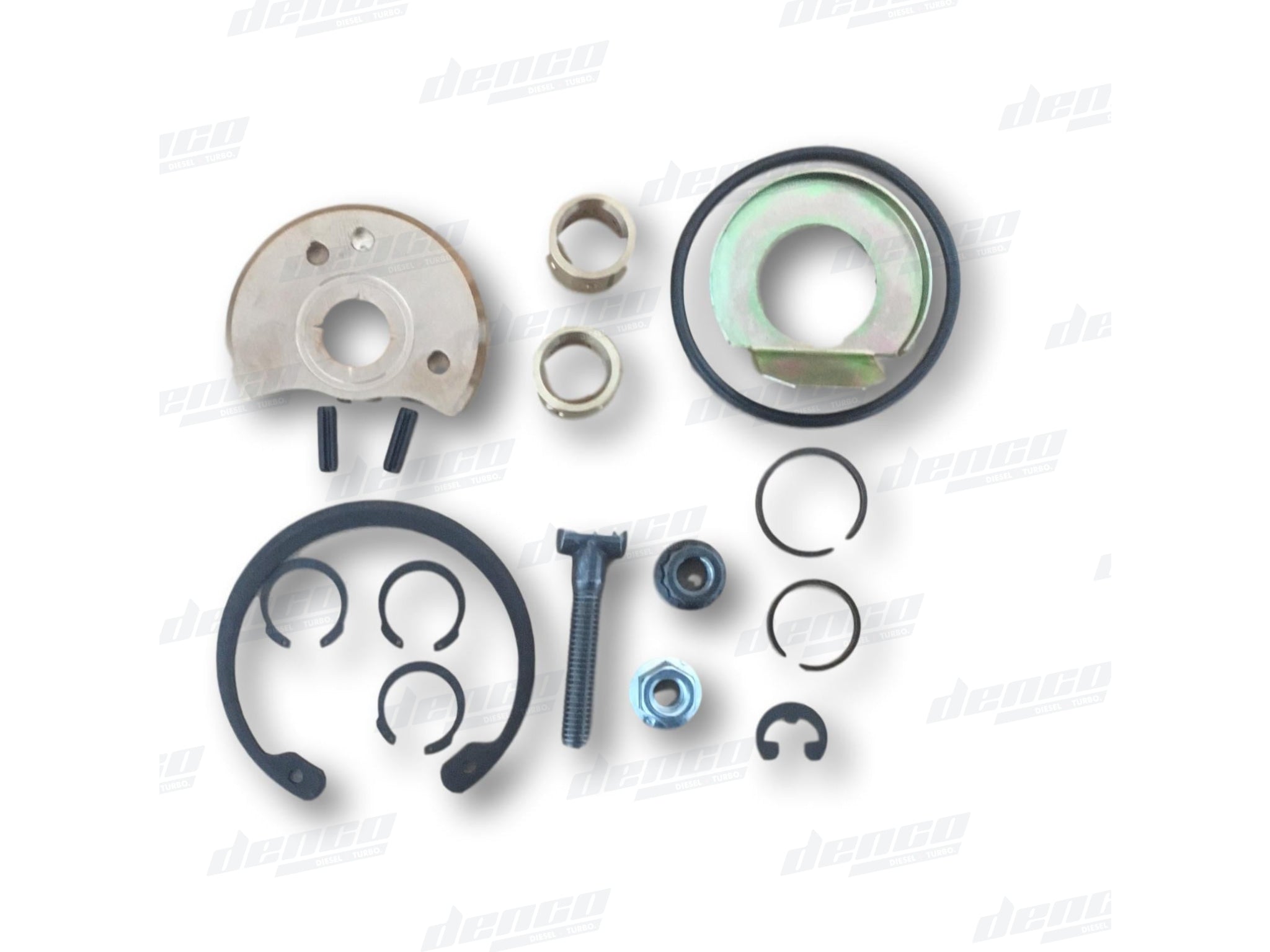

REPAIR KIT CONTENTS

2x 3503100 Journal Bearings

1x 3531419 Thrust Bearing

1x 3756754 Split Ring Seal (Turbine)

1x 3758848 Split Ring Seal (Compressor)

1x 3528933 Oring Seal (Bearing Housing)

1x 3528104 Oil Baffle

1x 3596402 Locknut (Compressor Wheel)

1x 3592050 Locknut (V-Band)

4x 3762259 Retaining Ring (Bearing)

1x 3527566 Retaining Ring (Insert)

1x 3528221 Retaining Ring (End Link)

2x 3522597 Roll Pin

1x 3590296 Screw (V-Band)



HOLSET TURBOCHARGER WHERE USED

3596283, 3594600, 3599484, 3598542, 4035052, 3598543, 3592311, 3592109, 3592204 . 3592107, 3592121, 3592125, 3592116, 3592118, 3592311, 3592313, 3592315, 3592308, 3592308, 3592317, 3593406, 3592308, 3592019, 3590019, 3590024, 3590026, 3590028, 3592105, 4040066, 4036875, 4036468, 4042955, 4045959, 4043008, 3776947, 3593406, 2838804, 3539803, 3592212, 3592102, 3599064
