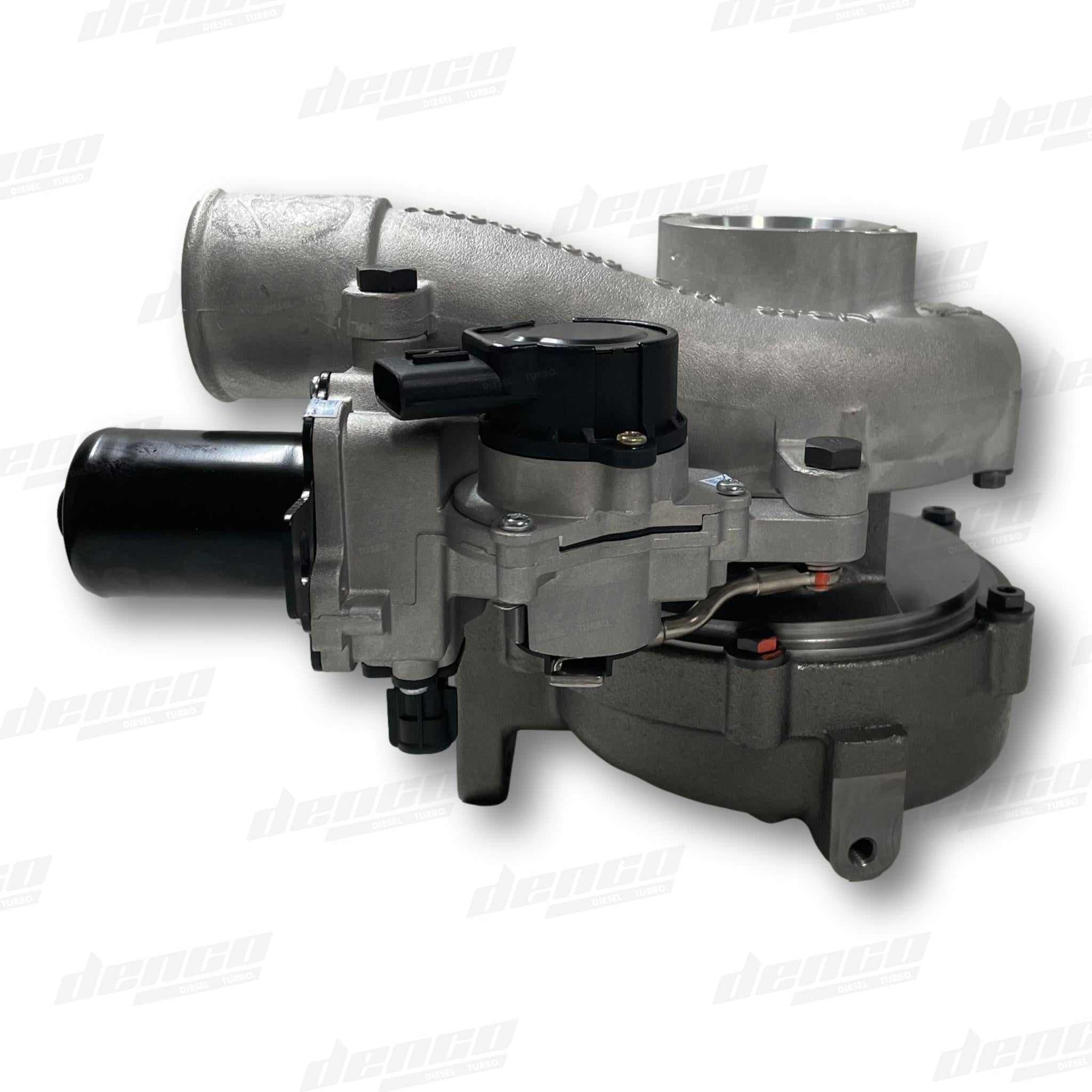

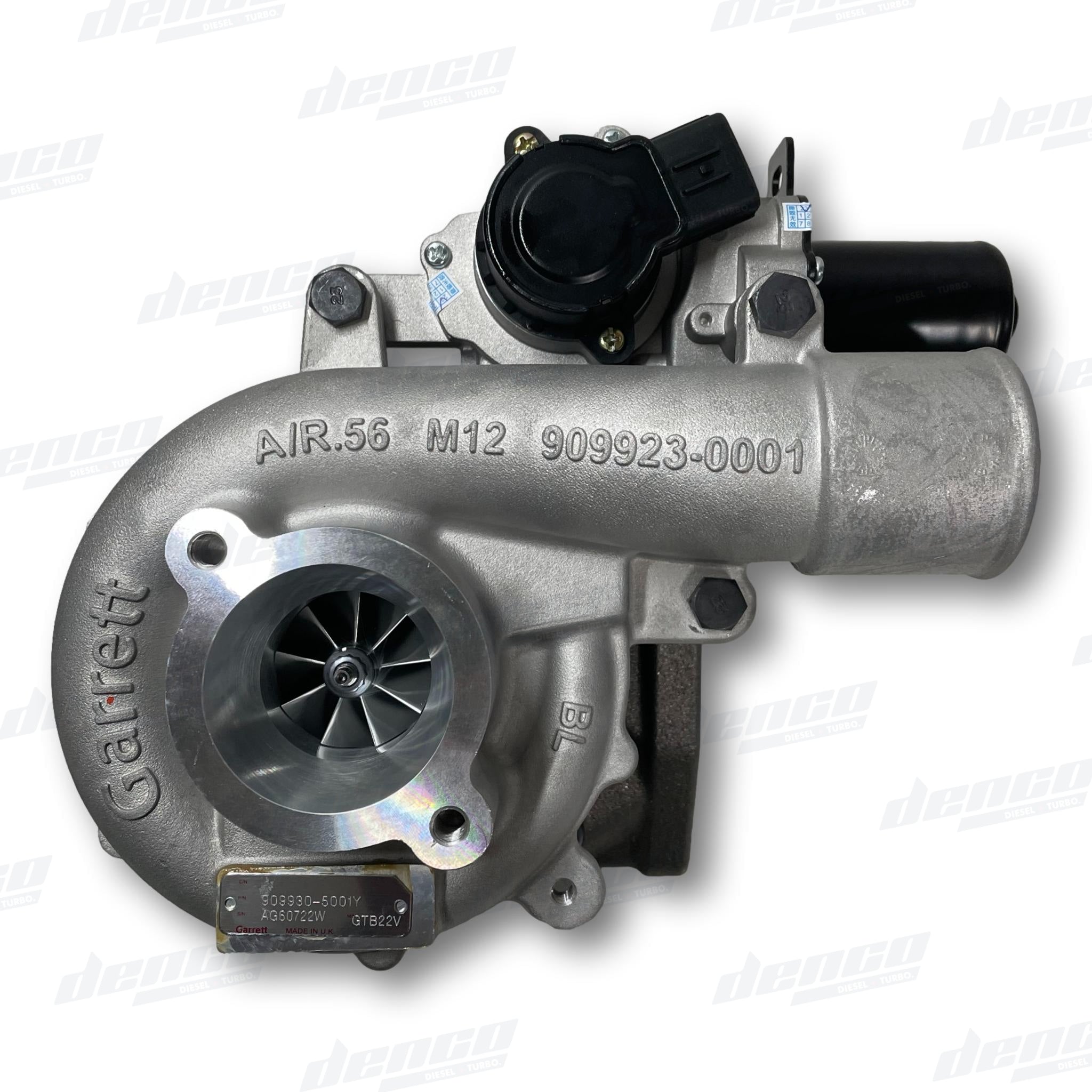

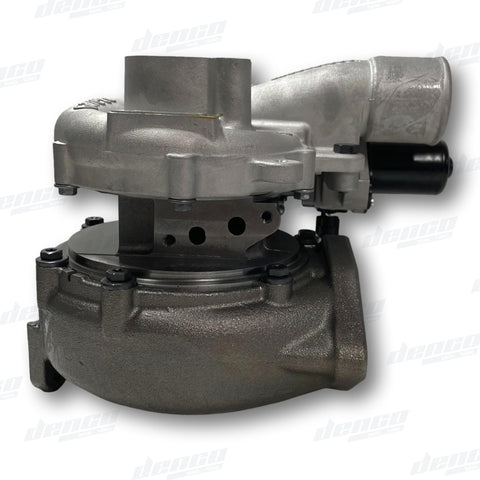

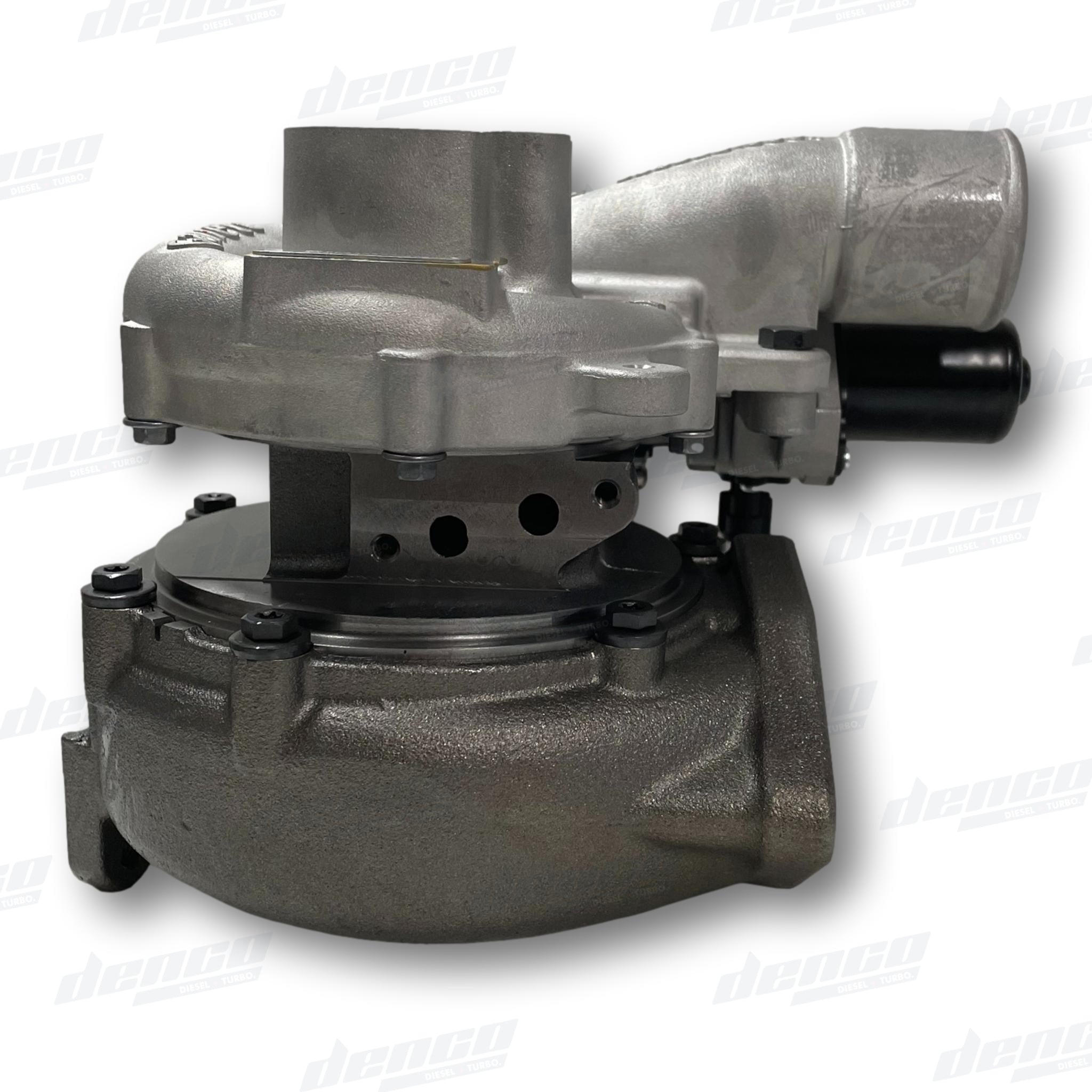

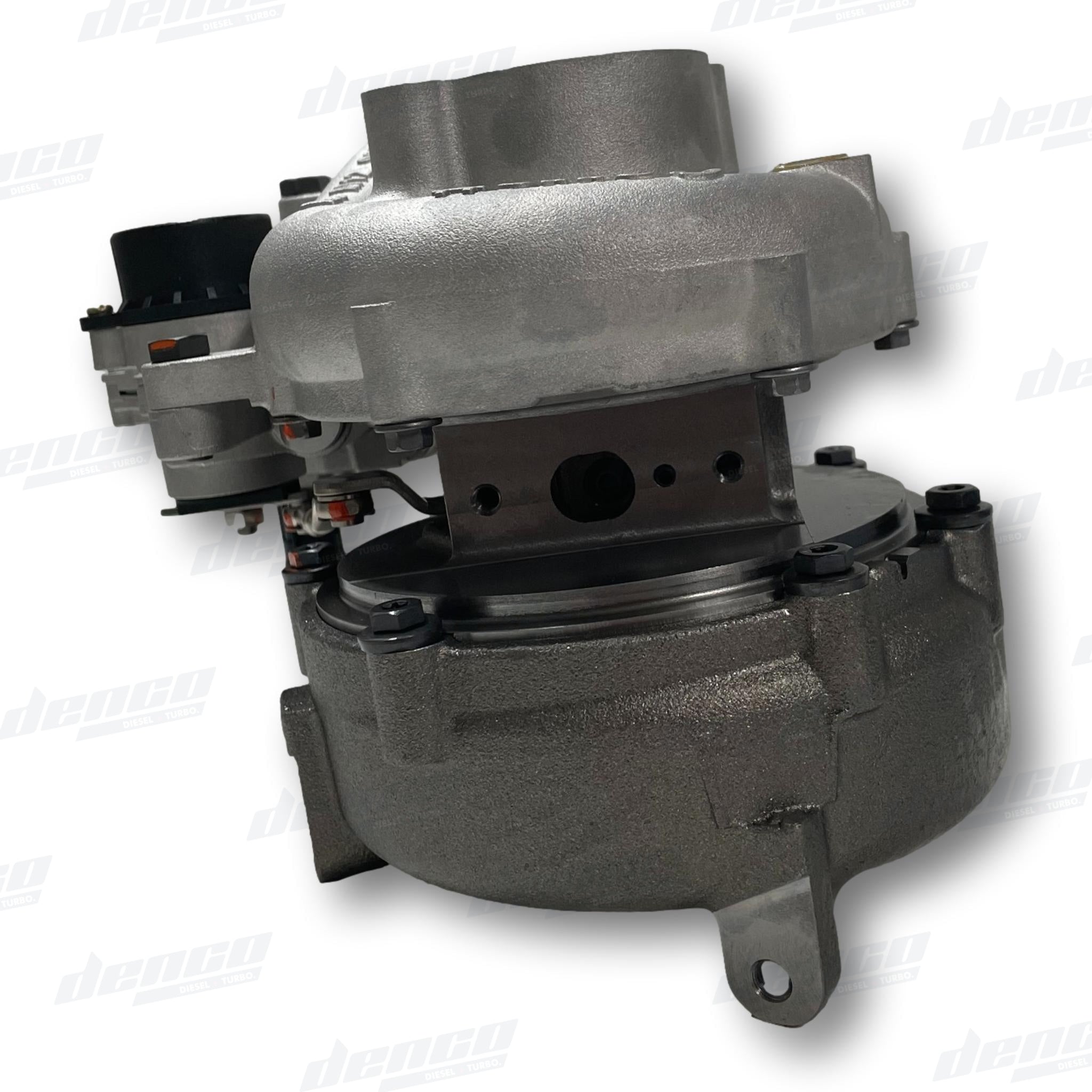

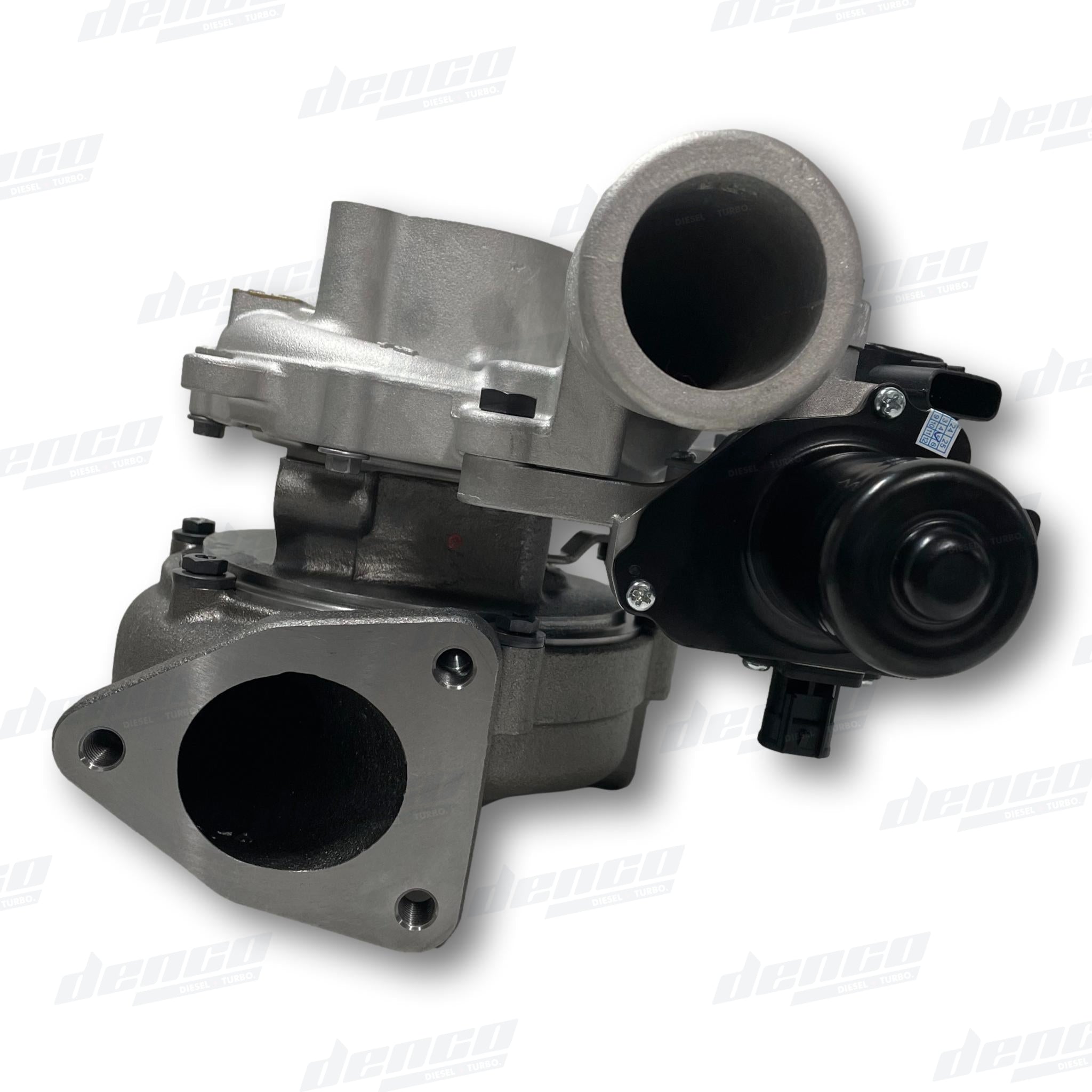

TIER 1 PREMIUM GARRETT TURBO REPLACEMENT

Tier 1 (OEM) Brand: Garrett Red Boost

Model: GTB2256VZK

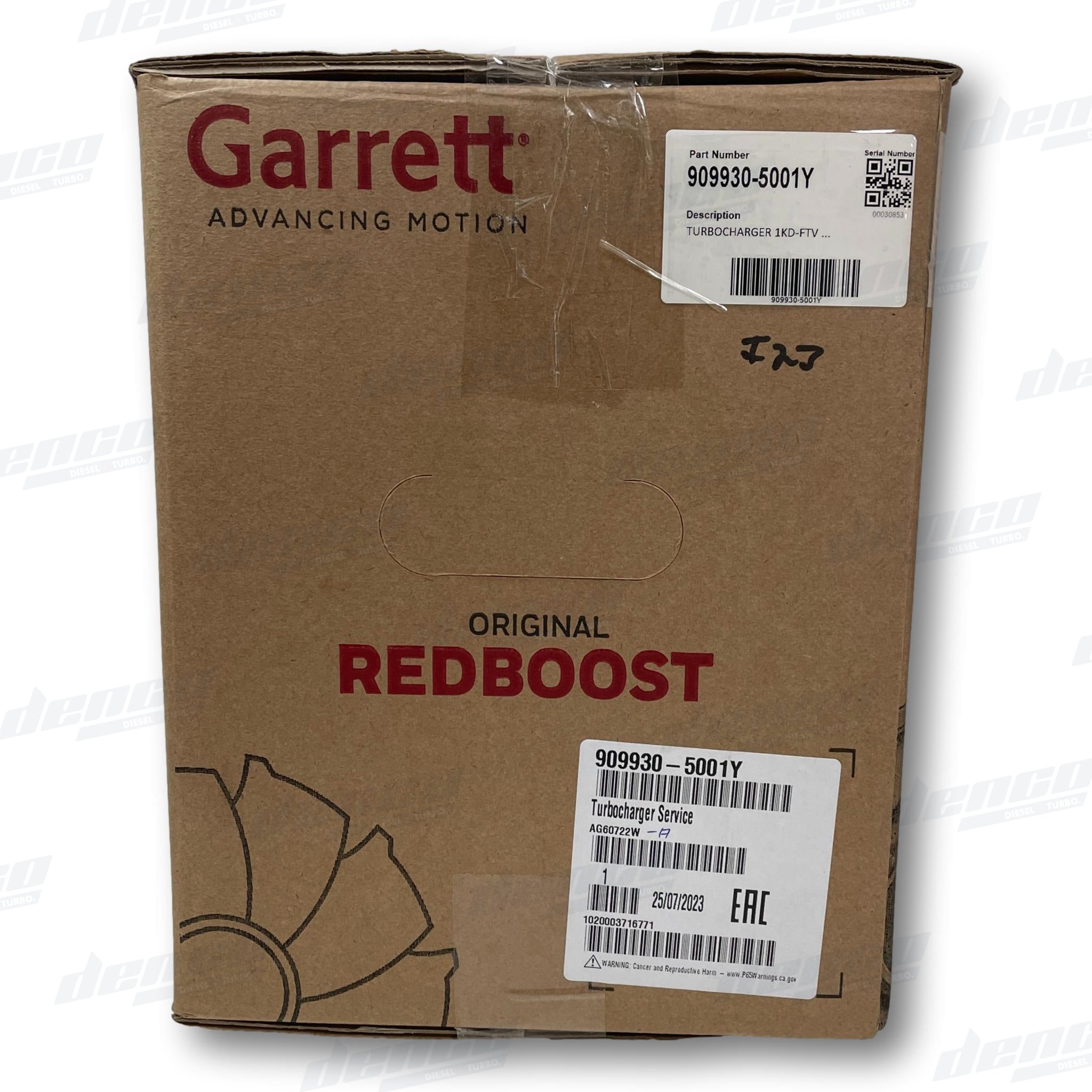

Part No: 909930-5001Y

Original Fitment IHI Turbo part no/s: 9B001, TC1VET-S0011B, TC1VETS0011B, TC1VED-S0015B, TC1VEDS0015B

Alternative BMTS Technology Drop in Turbo: 40008922

Toyota Part No: 17201-0L042, 17201-0L041, 17201-0L040, 17201-30110, 1720130110, 172010L040, 172010L041, 172010L042

Technology: Variable Nozzle Turbine (VNT)

Actuation: Electric (REA)

Condition: New

This is a genuine Garrett turbocharger and is brand new - it comes complete with 12 months warranty and after sales service. This is a Tier One drop in replacement for the original IHI Turbocharger. Refer to Associated Products for wiring harness add-ons to allow for multi-fitment.

FAQS: WHAT IS A DROP-IN TURBO?

ALTERNATIVE TURBO OPTIONS

Original Fitment IHI Turbo : 9B001

Alternate BMTS Technology Drop in Turbo: 40008922

ASSOCIATED PRODUCTS

Gasket Kit: DGK0020

Stud Kit: DSK0003

Turbo Lube 20g JLM-J06010

Turbo Oil Kit  DOK0006

Wiring Harness 778178-0004 **

Wiring Harness 778178-0005 **

** Wiring harnesses are not required for Hilux KUN26

If replacing for the Prado KDJ120/150 vehicles, harness 778178-0004 is required

If replacing for the Hiace KHD201/221/223 vehicles, both harnesses 778178-0004 & 778178-0005 are required

TURBO FITMENT INFORMATION

The Garrett drop-in replacement turbocharger has been engineered as a direct bolt on replacement. For some models modification to the turbocharger heat shield is required to complete installation.

TECHNICAL SERVICE BULLETIN

Prior to fitment of the replacement turbocharger please read over the below technical bulletin relating to turbocharger failures.

TOYOTA VEHICLE INFORMATION

Manufacturer: Toyota

Application: Passenger Vehicle

Model: Hilux D4D

Series: KUN26R

Engine: 1KD-FTV

Emissions: Euro 3, Euro 4

Displacement: 3.0L

From Year: 2005-2015

Fuel Type: Diesel
